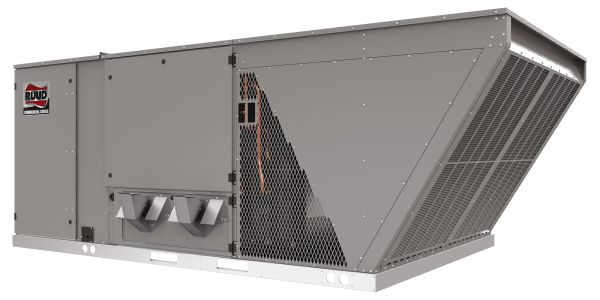

RGEHYB360 Resolute™ Line Achiever® Series Packaged G/E (30 Ton)
Packaged Gas/Electric
- Nominal size: 30 Ton
- Up to 9.8 EER / 13.0 IEER
- Five-stage cooling
- Coil Type: Fin and Tube Evaporator MicroChannel Condenser
- Factory Standard PlusOne® ClearControl™ and Single-Zone and Multi-Zone VAV
- Refrigerant Type: R-454B with factory-installed sensor
Item # |
Nominal Cooling Capacity |
Nominal CFM |
Voltage |
Weight |
|---|---|---|---|---|
| RGEHYB360ACF | Nominal Cooling Capacity N/A 348000 Btu/h101.99 kW30 TR | Nominal CFM N/A 11000 ft³/min5191 L/s | Voltage N/A 208 VAC - 230 VAC | Weight N/A 2541 lb1153 kg |
| RGEHYB360ACG | Nominal Cooling Capacity N/A 348000 Btu/h101.99 kW30 TR | Nominal CFM N/A 11000 ft³/min5191 L/s | Voltage N/A 208 VAC - 230 VAC | Weight N/A 2541 lb1153 kg |
| RGEHYB360ADF | Nominal Cooling Capacity N/A 348000 Btu/h101.99 kW30 TR | Nominal CFM N/A 11000 ft³/min5191 L/s | Voltage N/A 460 VAC | Weight N/A 2541 lb1153 kg |
| RGEHYB360ADG | Nominal Cooling Capacity N/A 348000 Btu/h101.99 kW30 TR | Nominal CFM N/A 11000 ft³/min5191 L/s | Voltage N/A 460 VAC | Weight N/A 2541 lb1153 kg |
| RGEHYB360AYF | Nominal Cooling Capacity N/A 348000 Btu/h101.99 kW30 TR | Nominal CFM N/A 11000 ft³/min5191 L/s | Voltage N/A 575 VAC | Weight N/A 2541 lb1153 kg |
| RGEHYB360AYG | Nominal Cooling Capacity N/A 348000 Btu/h101.99 kW30 TR | Nominal CFM N/A 11000 ft³/min5191 L/s | Voltage N/A 575 VAC | Weight N/A 2541 lb1153 kg |
