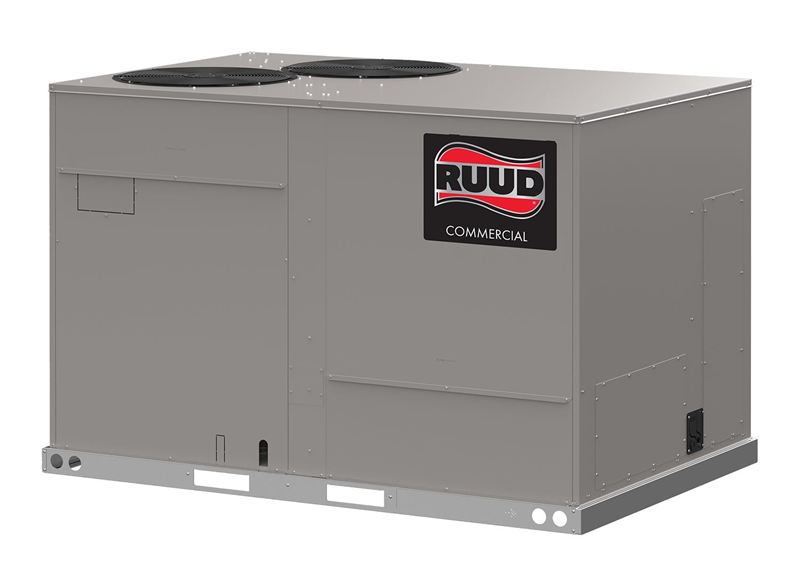

  • RHPDYC Renaissance™ Line Achiever Plus® Series Packaged Heat Pump
  • Nominal sizes: 6.5-10 Tons
  • Up to 17.6 IEER / 12 EER / 3.6 COP
  • Three-stage cooling & two-stage heating
  • Coil Type: Full MicroChannel
  • Standard Advanced Unitary Controller
  • Refrigerant Type: R-454B with factory-installed sensor
1 - 8 of 8 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Nominal Cooling Capacity

Nominal CFM

Voltage

Weight

N/A 78000 Btu/h22.86 kW N/A 2400 ft³/min1133 L/s N/A 208 to 230 V N/A 869 lb394 kg
N/A 78000 Btu/h22.86 kW N/A 2400 ft³/min1133 L/s N/A 460 V N/A 869 lb394 kg
N/A 90000 Btu/h26.37 kW N/A 2800 ft³/min1321 L/s N/A 208 to 230 V N/A 1009 lb458 kg
N/A 90000 Btu/h26.37 kW N/A 2800 ft³/min1321 L/s N/A 460 V N/A 1009 lb458 kg
N/A 102000 Btu/h29.89 kW N/A 3200 ft³/min1510 L/s N/A 208 to 230 V N/A 1009 lb458 kg
N/A 102000 Btu/h29.89 kW N/A 3200 ft³/min1510 L/s N/A 460 V N/A 1009 lb458 kg
N/A 120000 Btu/h35.16 kW N/A 4000 ft³/min1888 L/s N/A 208 to 230 V N/A 1009 lb458 kg
N/A 120000 Btu/h35.16 kW N/A 4000 ft³/min1888 L/s N/A 460 V N/A 1009 lb458 kg
