CAD/BIM

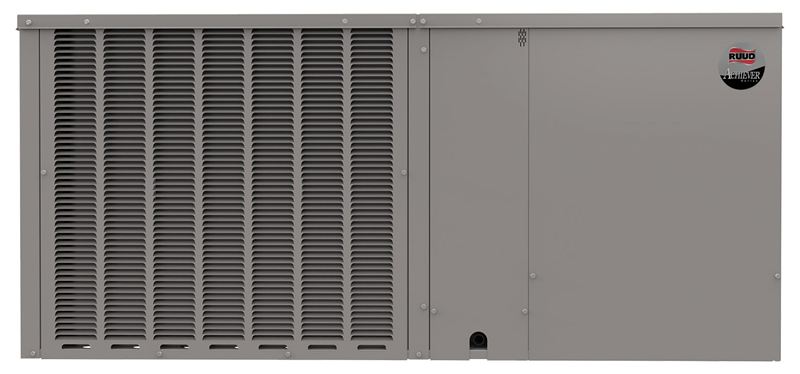

  • RHPBYC
  • Scroll Compressors on all models: Provides maximum efficiency and quiet operation.
  • Thermal Expansion Valves: Standard on all models for precise superheat control, reliability, and energy efficiency at all operating conditions.
  • High Pressure Control / Low Press Control
    Standard on all models for refrigerant component protection and reliability.
  • Easily Accessible Control Box and Slide-Out Blower Section
    Allows for faster installability and serviceability.
  • Supplemental Electric Heating Option Available: Field-Installed, electrical heat strips, up to 15 kW with simplified single-point wiring, are available for periods of extreme weather conditions.
  • Tested. Trusted. Tough.
    100% Factory Run Tested.
  • PlusOne® Refrigerant Detection System™ Integrated, patented design providing system protection and homeowner peace-of-mind with low GWP refrigerant monitoring
1 - 8 of 8 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Nominal Cooling Capacity

Nominal CFM

AHRI Rated CFM

Weight

N/A 24000 Btu/h7.03 kW N/A 800 ft³/min378 L/s N/A 750 ft³/min354 L/s N/A 330 lb149.7 kg
N/A 24000 Btu/h7.03 kW N/A 800 ft³/min378 L/s N/A 750 ft³/min354 L/s N/A 330 lb149.7 kg
N/A 36000 Btu/h10.55 kW N/A 1275 ft³/min602 L/s N/A 1200 ft³/min566 L/s N/A 350 lb158.8 kg
N/A 36000 Btu/h10.55 kW N/A 1275 ft³/min602 L/s N/A 1200 ft³/min566 L/s N/A 350 lb158.8 kg
N/A 48000 Btu/h14.06 kW N/A 1400 ft³/min661 L/s N/A 1400 ft³/min661 L/s N/A 430 lb195 kg
N/A 48000 Btu/h14.06 kW N/A 1400 ft³/min661 L/s N/A 1400 ft³/min661 L/s N/A 430 lb195 kg
N/A 60000 Btu/h17.58 kW N/A 1850 ft³/min873 L/s N/A 1800 ft³/min850 L/s N/A 430 lb195 kg
N/A 60000 Btu/h17.58 kW N/A 1850 ft³/min873 L/s N/A 1800 ft³/min850 L/s N/A 430 lb195 kg
